Product Introduction

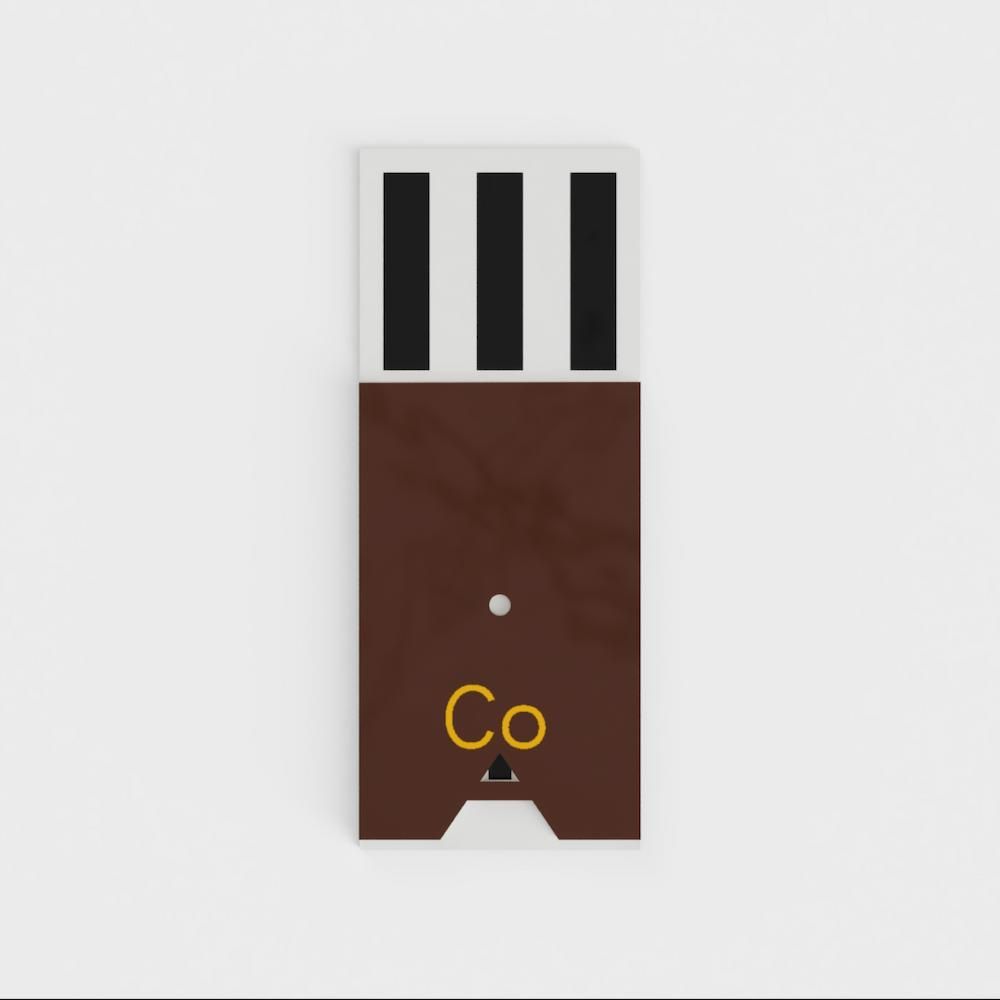

Cobalt Ion Electrochemical Sensor Test Strip
The M series test strips introduce key technologies of biomedical blood glucose test strips, integrating electrochemical three-electrode system, microfluidics and drug coating technology on each sensor. Using a consistent production process, the quality of each tube sensor test strip is strictly controlled, and laboratory ppb-level detection can be achieved within a few minutes. With the portable electrochemical metal ion detection system MAS G1, users do not need complicated pre-treatment and calibration procedures, and do not need to worry about sample cross-contamination or interference caused by human operation, and can obtain the most real-time data in a highly efficient way.
SPECIFICATION
- model
- Co-M005030
Detection species Cobalt ion - length
- 30 mm
- width
- 12 mm
- Microchannel volume
- 25 uL
- Calibration line concentration range
- 0.05-0.30 mg/L
- Minimum detection limit
- 0.03 mg/L
- Analysis time
- 125 seconds
Technical Information

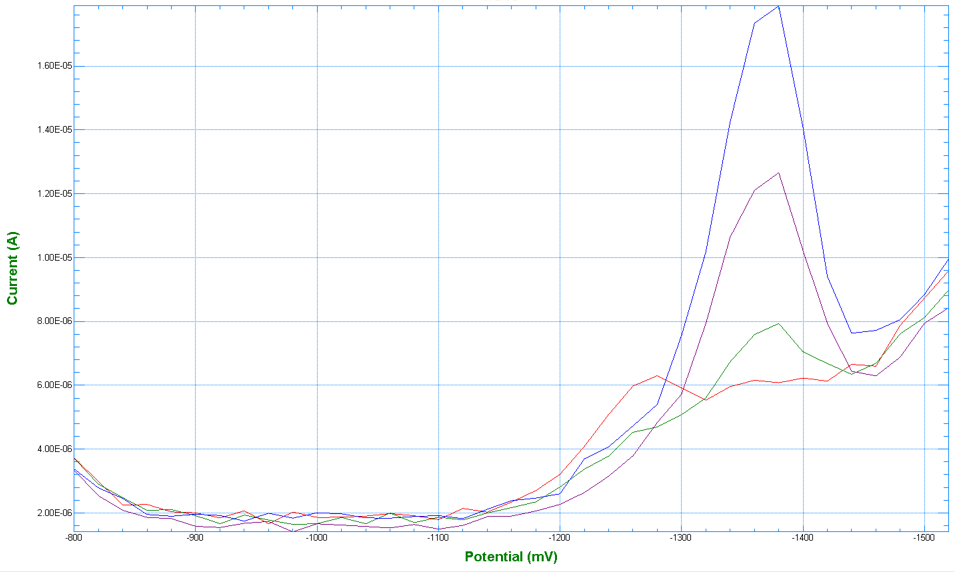

The left picture shows the electrochemical voltammogram of different concentrations of cobalt ions (0.05-0.30 mg/L) in semiconductor industry wastewater detected by using a cobalt ion sensor (Co-M005030) and an electrochemical metal ion detection system (MAS G1).
There is a very obvious cobalt ion current signal near -1350 mV. The signal increases with the increase of cobalt ion concentration. After regression analysis of the current signal intensity and concentration, R2 > 0.99, indicating that this sensor can accurately quantify in real samples.
The quantitative range of Co-M005030 (0.05-0.30 mg/L) is a low concentration test strip customized for specific customers. If you need to monitor the cobalt concentration in the effluent water (the current control standard is 1.0 mg/L), or have a quantitative requirement below 0.05 mg/L, please call or write to our company for further discussion.
FEATURES
- No need to add pre-treatment reagents, just dip the test piece in the water sample
- No need to build a calibration line
- Equipped with microfluidic reaction tank, which is pre-coated with reaction reagents (non-controlled toxic substances)
- Only one drop of sample required
- Electrochemical three-electrode system detection (non-optical method)
- The material of the test piece is recyclable and will not cause any environmental burden
The metal ion sensor of ACCUSENSING Technology has improved the problems of on-site water quality rapid screening tools/instruments on the market that have no numerical values when detecting heavy metals, require pre-treatment with chemicals, are cumbersome and time-consuming to operate, and are inconvenient to carry. After continuous research and development, improvement, and real factory water sample testing, the product has been adopted by well-known domestic and foreign customers such as the Environmental Protection Administration of the Executive Yuan, Nan Ya Technology, a semiconductor manufacturer of the Formosa Plastics Group, Yongqiang Co., Ltd., a well-known electroplating company in the north, and MAPUA University in the Philippines.
